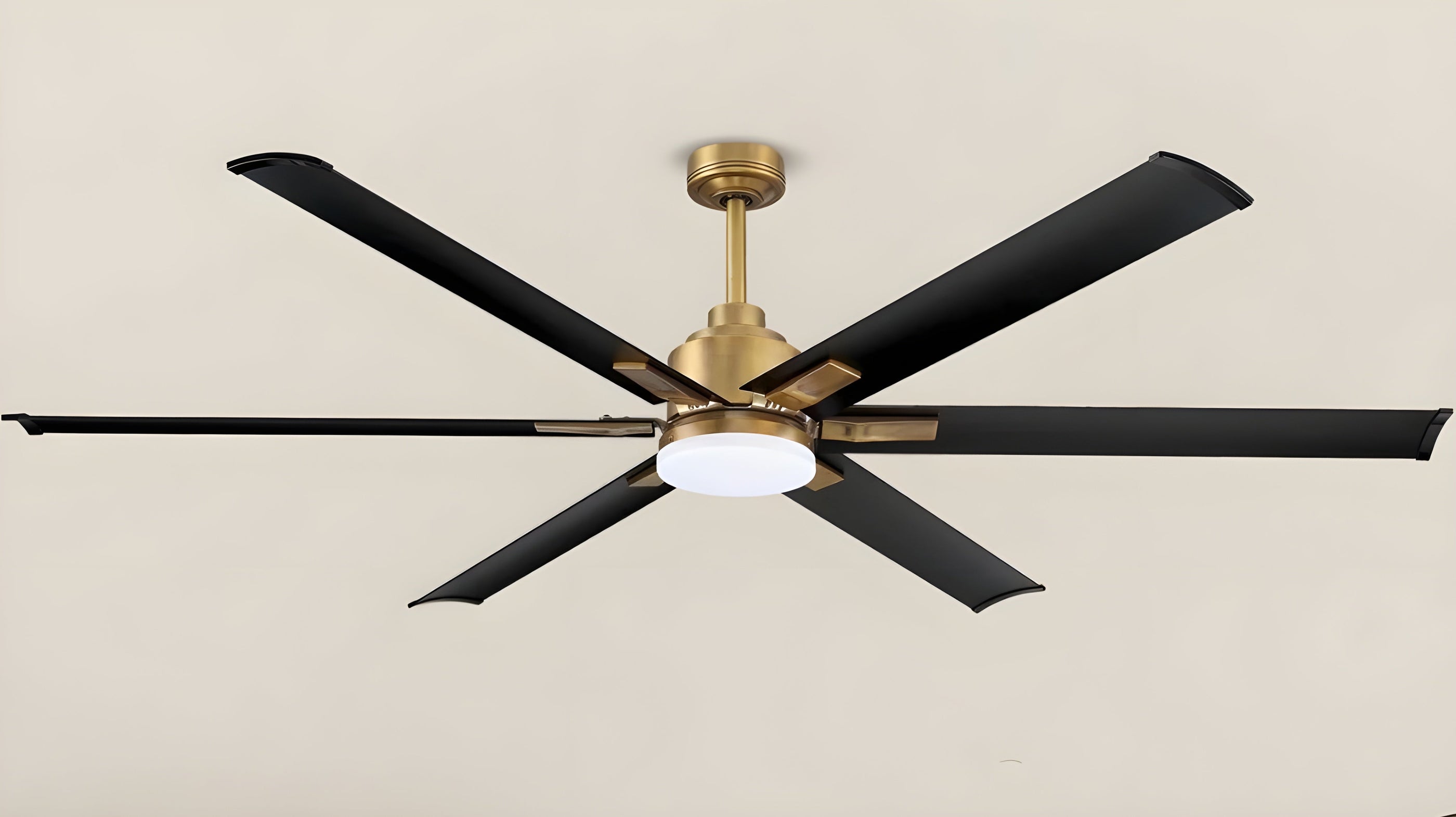

Industrial Ceiling Fan CFM Chart: How to Match Airflow to Your Square Footage

When you buy an industrial ceiling fan, you are not really buying metal and motors. You are buying airflow. The problem is that “airflow” is hard to picture, and spec sheets full of CFM and square footage do not always make that any easier.

Day to day, we talk to warehouse managers, shop owners, and gym operators who all ask some version of the same question:

“How many CFM do I actually need for my square footage, and how do I know I am not under- or over-sizing these fans?”

This guide walks through the logic behind CFM per square foot, how to calculate the numbers for your space, and how to read fan specs so they actually mean something in the real world.

How Much CFM Per Square Foot Does an Industrial Ceiling Fan Need?

1. What CFM per square foot really means

CFM (cubic feet per minute) is simply how much air volume a fan moves in one minute. When you divide total CFM by your floor area, you get a rough “airflow density” number:

CFM per square foot = total fan CFM ÷ floor area (sq ft)

That number tells you how much air movement people in the occupied zone will feel.

A few reference points:

• Ventilation codes for warehouses set minimum fresh air rates around 0.06 CFM per square foot, which is enough for basic air quality but not for comfort in a hot building.

• General HVAC and exhaust fan calculators often use rules of thumb around 0.1–1 CFM per square foot, depending on use and required air changes per hour.

• Commercial ceiling fan guides aimed at comfort suggest targeting at least 2 CFM per square foot of space for noticeable airflow.

For large industrial spaces using ceiling fans strictly for comfort (not fresh air), what we see in practice is this:

• Light use, storage, mild climates: roughly 1–2 CFM/sq ft

• Normal warehouses, production, auto shops: 2–4 CFM/sq ft

• Hot gyms, high-heat work areas, poor insulation: 4–6+ CFM/sq ft

These are comfort-based targets, not code requirements, but they line up reasonably well with typical fan sizing tools used in industry.

2. Simple CFM per square foot chart

Here is a quick reference chart you can adapt to your own building. It assumes normal ceiling heights for each use case and fans used for air movement, not fresh make-up air.

These ranges are a blend of published rules of thumb for fan airflow and ventilation plus field experience from real sizing projects.

3. Quick “sanity check” example

Say you have a 10,000 sq ft warehouse and you want around 3 CFM per sq ft:

• Target total CFM ≈ 10,000 × 3 = 30,000 CFM

• That could come from:

  • One large HVLS fan rated near 30,000 CFM (if your layout is open), or

  • Two smaller industrial fans around 15,000 CFM each, or

  • Several high-velocity fans arranged over work cells, totaling about 30,000 CFM

Once you have that target number in mind, the spec sheets start making sense very quickly.

How To Calculate CFM Per Square Foot For Your Space

You do not have to guess. There is a straightforward way to calculate a reasonable airflow target using your room volume and desired air changes per hour (ACH).

1. Step 1: Measure your room volume

Start with the basics:

• Length (ft) × width (ft) = floor area (sq ft)

• Floor area × average ceiling height (ft) = volume (cubic ft)

Example:
A 100 ft by 80 ft warehouse with 24 ft ceilings:

• Area = 100 × 80 = 8,000 sq ft

• Volume = 8,000 × 24 = 192,000 cubic ft

2. Step 2: Pick a target air changes per hour (ACH)

ACH is how many times per hour you want the air in the room mixed or “turned over.”

Ventilation guidelines for workplaces like gyms, factories, and warehouses often use 6–30 ACH, depending on how dirty or hot the process is.

For ceiling fans used mainly to keep people comfortable (not for code ventilation), most industrial projects fall somewhere like:

• 4–6 ACH for simple storage

• 6–10 ACH for busy warehouses and light manufacturing

• 10+ ACH only in hot, high-load or specialty spaces

3. Step 3: Use the standard CFM formula

The standard HVAC formula is:

CFM = (room volume × ACH) ÷ 60

This is the same logic used by commercial fan and exhaust fan calculators.

Using our 8,000 sq ft warehouse example:

• Volume = 192,000 cubic ft

• Suppose you want 6 ACH for decent comfort and mixing.

CFM = 192,000 × 6 ÷ 60
CFM = 1,152,000 ÷ 60
CFM ≈ 19,200 CFM

Now convert that to CFM per square foot:

• 19,200 ÷ 8,000 = 2.4 CFM/sq ft

That lines up perfectly with the 2–3 CFM/sq ft comfort target for typical warehouses we discussed earlier. You have gone from “I have no idea what size fan we need” to “We are aiming for about twenty thousand CFM total or 2–3 CFM per square foot.”

How To Calculate Industrial Ceiling Fan CFM

Once you know the airflow you want, the next step is matching that with fan specs. Fortunately, you do not need to calculate CFM from scratch in most cases, but it helps to understand what is behind the number.

1. Start with manufacturer CFM ratings

Every serious industrial or HVLS ceiling fan manufacturer publishes CFM ratings based on standardized test methods. For HVLS fans, organizations like AMCA are working with manufacturers to tighten up testing and ensure the published numbers are realistic.

In practice, you will usually see:

• CFM at different fan speeds

• A maximum CFM number used for marketing and sizing

• Sometimes an efficiency rating (CFM per watt)

Those ratings are the easiest way to sum up total airflow when you use multiple fans: just add each fan’s CFM at your planned operating speed.

2. How CFM is calculated in principle

If you are curious where CFM comes from, it ties back to geometry and fan speed. A simplified version of the formula looks like this:

CFM ≈ π × r² × blade depth × number of blades × RPM

Where:

• r is the radius of the fan (feet)

• Blade depth is roughly how “tall” the blade profile is

• Number of blades and RPM are self-explanatory

You do not need to run that math on every project, but it explains why:

• Doubling diameter has a huge impact on CFM,

• Increasing blade count adds airflow (up to a point), and

• High RPM is not always necessary for high CFM if the fan is large enough.

3. Combining fans: shared CFM and coverage

If you have an irregular space, you might combine different fan types:

• One large HVLS fan covering open floor

• A few smaller industrial ceiling fans over packing lines

• Some high-velocity floor or wall fans pointed at hot spots

As long as the total CFM for the occupied zone hits your target (for example, 25–30k CFM for that 10k sq ft warehouse), and the airflow is distributed where people actually stand, the combination will work. This is often more effective than trying to force one fan to do everything.

Do Fan Blades Affect Airflow?

Short answer: absolutely. CFM is not just about motor power; the blade system does a lot of the heavy lifting.

1. Blade diameter and coverage area

The single biggest driver of CFM is fan diameter. HVLS fan diameter ranges from about 6 ft up to 24 ft, and one well-sized fan can cover 1,400 to 22,000 sq ft, depending on the model and ceiling height.

Larger diameter means:

• A much bigger “disc” of air is being swept with each rotation.

• You can run at lower RPM for the same or higher CFM.

• Air moves in a large, slow-moving column rather than a narrow high-speed jet.

This is why a single huge HVLS fan can often replace a whole cluster of smaller high-speed fans in a warehouse.

2. Blade pitch and shape

Blade pitch (the angle of the blade relative to the horizontal) and blade shape also matter:

• Steeper pitch generally pushes more air at a given RPM but increases drag.

• Blade shapes used in HVLS and industrial fans are designed to move a high volume of air quietly and efficiently, avoiding turbulence that wastes energy.

Manufacturers tune blade pitch to match motor torque, fan size, and the intended application. This is why two fans with the same diameter and motor wattage can have very different CFM ratings.

3. Number of blades

More blades do not automatically mean more airflow, but they often correlate with higher CFM because:

• Each blade adds more surface area to move air.

• Higher blade counts are usually paired with stronger motors that can handle the drag.

Residential research across hundreds of fans shows a clear trend: as blade count increases, average CFM tends to rise, though design details still matter.

In the industrial world, many HVLS fans use 3 or 4 wide blades designed for efficiency rather than high blade count. For sizing, always rely on the tested CFM rating, not the number of blades alone.

How To Choose The Right Large Industrial Ceiling Fan

At this point, you know your rough CFM target and understand what affects fan CFM. The next step is choosing actual models.

1. Match fan CFM and coverage to your square footage

Good HVLS sizing guides start with your:

• Square footage

• Ceiling height

• Layout (open vs racked, any mezzanines, etc.)

From there, you typically see recommendations like:

• Smaller HVLS fans (8–12 ft) for spaces up to about 2,500–5,000 sq ft

• Larger diameters (12–20+ ft) for spaces over 10,000 sq ft, sometimes one fan per 2,500–4,000 sq ft depending on height and layout

Always cross-check that against your CFM target:

• Example: 15,000 sq ft production floor, target 3 CFM/sq ft ≈ 45,000 CFM total.

• You might choose:

  • Two fans at 22,000–25,000 CFM each, or

  • One large fan plus several smaller fans over specific lines.

2. Factor in ceiling height and obstructions

High ceilings and racking change how far a fan’s air column can reach.

• Very high ceilings (30 ft and up) may require larger fans or careful drop rod selection so the blades are at an effective height.

• Dense pallet racking, low trusses, and overhead equipment can block airflow, meaning one big fan in the center may not actually solve hot corners.

We routinely break large buildings into “zones” and size airflow for each zone separately instead of treating the whole space as one big volume.

3. Look at efficiency, not just maximum CFM

Two fans can deliver the same CFM but use very different amounts of power.

• CFM per watt is a useful metric: more airflow for each watt of input power means lower operating cost.

• Newer EC or BLDC motors in industrial fans often deliver better CFM per watt than older AC motors at similar diameters.

In real projects, we often steer customers toward a fan that is slightly more expensive up front but has better CFM per watt, because it pays back quickly in electricity savings, especially in hot climates where fans run for long hours.

When One Large HVLS Fan Beats Multiple Smaller Fans

A common decision point is whether to install one or two big HVLS fans or stick with a cluster of traditional industrial ceiling fans.

1. When one big fan makes sense

A single large HVLS fan is often the better choice when:

• The floor plan is open and mostly unobstructed.

• Ceiling height is sufficient (often 20 ft or more, depending on the model).

• You want uniform comfort across a big continuous area.

HVLS fans in the 12–24 ft range can cover 1,400 to 22,000 sq ft per fan, depending on model and installation, which makes them extremely efficient in big, open spaces.

We have seen cases where a single 18 ft HVLS fan allowed the customer to remove or switch off more than half a dozen noisy high-speed fans while improving comfort.

2. When multiple smaller fans are a better fit

Clusters of smaller industrial ceiling fans or high-velocity fans usually make more sense when:

• The building is chopped into aisles, cells, or mezzanines.

• Ceiling height is low or inconsistent, so a big fan cannot maintain safe clearances.

• You have very localized hot spots (over ovens, weld bays, etc.) and do not need to treat the entire building equally.

In those situations, you still use the same math:

• Total CFM target stays the same.

• You just distribute that CFM across more fans and different mounting locations.

3. Cost and control trade-offs

From a cost standpoint:

• One big fan can have a higher unit cost but fewer mounts, fewer electrical runs, and often lower power draw per CFM than many small fans.

• Multiple small fans offer finer control: you can turn specific zones up or down without affecting the entire building.

Many customers end up with a hybrid approach: one or two HVLS fans for the main floor plus some smaller fans for “problem” areas.

FAQ: Industrial Ceiling Fan CFM and Sizing

Q1:How much CFM do I need per square foot in a warehouse?
For comfort cooling and air mixing (not just minimum ventilation), a practical range is about 2–3 CFM per sq ft for a typical warehouse. Hotter operations or poor insulation may justify going up toward 4–5 CFM per sq ft. This is higher than the code ventilation minimums (around 0.06 CFM/sq ft) because you are designing for comfort, not just fresh air.

Q2:Is higher CFM always better?
Not always. Too much CFM in a small or confined area can feel like a wind tunnel, blow paperwork and light materials around, and waste energy. The goal is enough CFM to meet your air-change target and comfort expectations, without creating turbulence or noise problems. For very small rooms, CFM per square foot is naturally higher; for large open areas, the CFM per square foot number usually drops while comfort stays acceptable.

Q3:How do I calculate fan CFM from my room size and ACH?
Use the standard formula:

• Measure length, width, and height to get room volume.

• Choose an ACH (air changes per hour) based on how active or hot the space is.

• Plug into CFM = volume × ACH ÷ 60.

Then divide the result by your floor area to get CFM per sq ft. This is the same approach used by professional fan and ventilation calculators.

Q4:Do bigger fan blades always mean more CFM?
Bigger blades almost always move more air, but the full picture includes:

• Diameter (the biggest factor)

• Blade pitch and shape

• Motor power and RPM

HVLS and industrial fan makers tune these elements to hit specific CFM and efficiency targets, which is why you should always rely on the published CFM data instead of assuming “bigger is automatically better.”

Q5:Can I mix different fans to hit my CFM target?
Yes. Many real-world projects use a combination of:

• One or two large HVLS fans for broad coverage, and

• Several smaller industrial or directional fans for specific hot zones.

Add up the CFM of all the fans that are actually serving the occupied zone and compare that to your calculated target. As long as airflow in the work area feels uniform and you are near your CFM goal, the mix of fan sizes and types is less important than the total and the coverage.

If you walk through these steps—calculate your room volume, pick a realistic ACH, convert to CFM per square foot, and then match that with honest fan CFM ratings—you will be ahead of most buyers. Instead of guessing, you will know exactly why a particular industrial ceiling fan (or set of fans) is the right match for your square footage.
